Project Update: 2024/May/16: Preorders are open for the first batch of DB25 MKII and the conversion board allowing it to work with the original Performance Mixer.
Preorder Information:
Preorders are open for the first production run. I expect to begin shipping production units in September.
International Preorders: I have to enter these manually, since "Markets Pro", Shopify's international shipment service doesn't support preorders. Please contact me through the web form, and I will create a preorder for you.
Additionally, domestic and international dealers will be able to order the PM DB25 MKII, and you can order through them.
I will be shipping orders in the sequence I receive them. I'm doing the final assembly and testing for this first production run here in Denver. Just myself and Paul building them, so it may take a while. If orders are wild, then I'll hire back some of the talent from a prior lifetime.
Balanced outputs for your Performance Mixer MKII

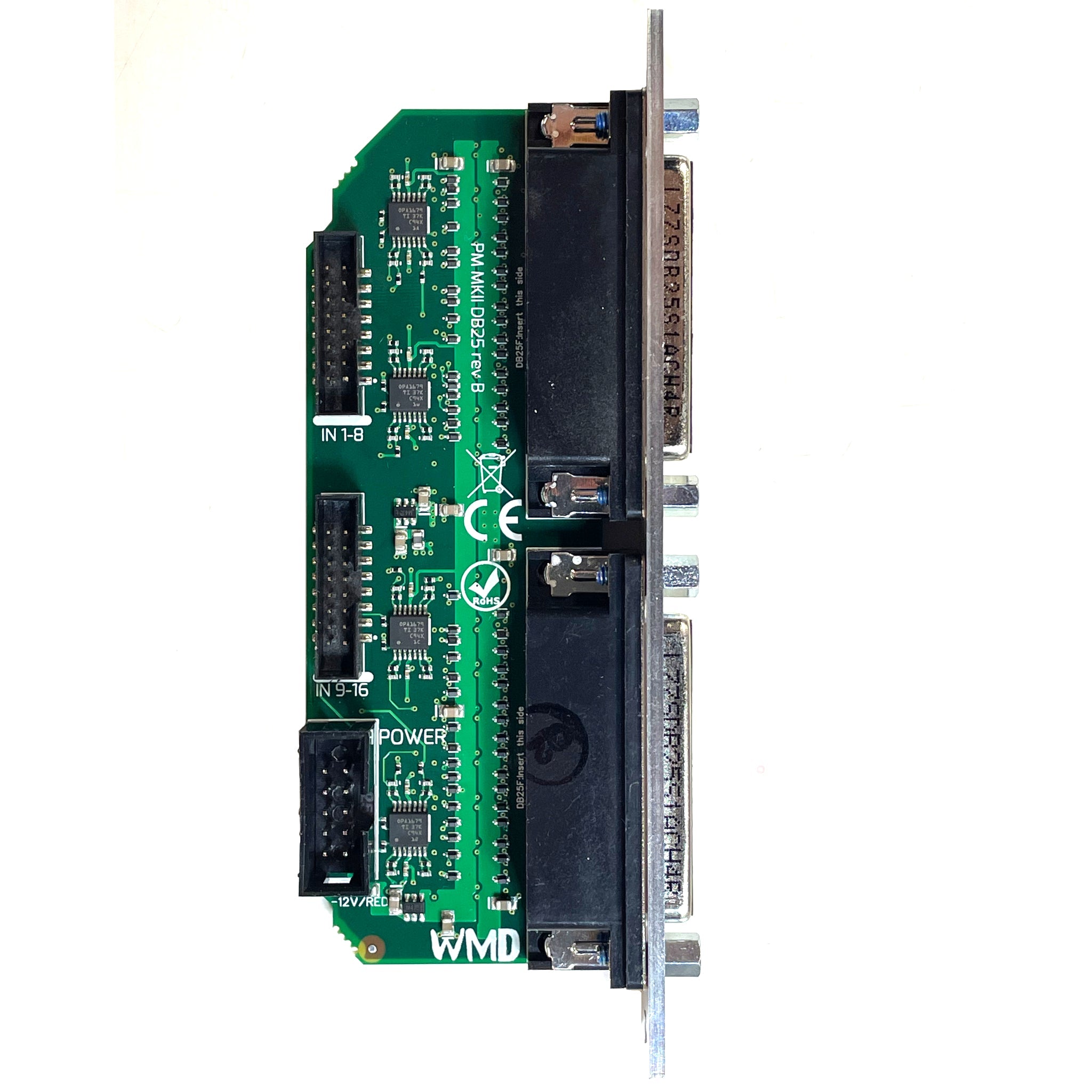

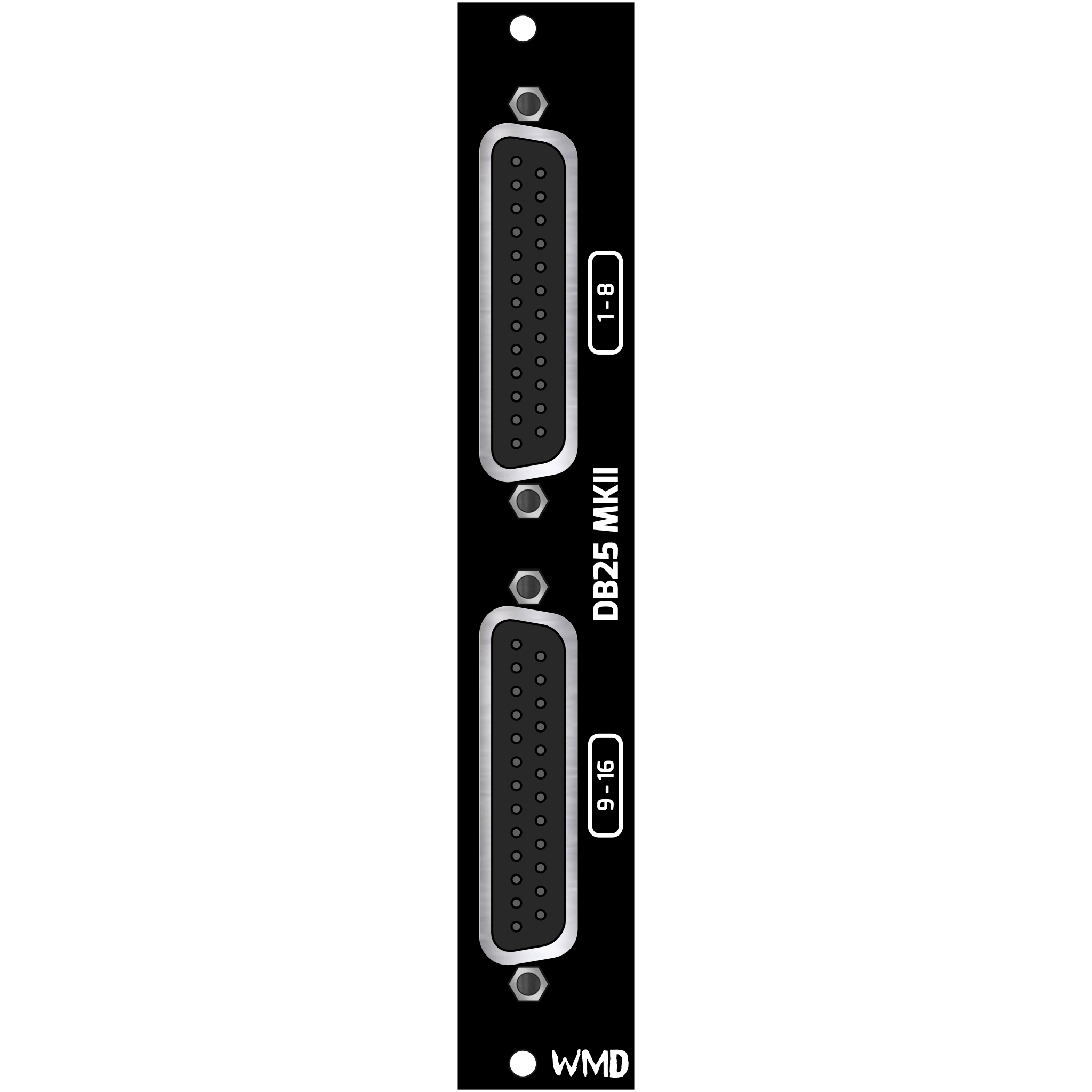

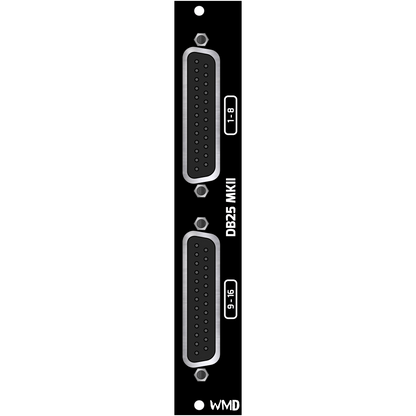

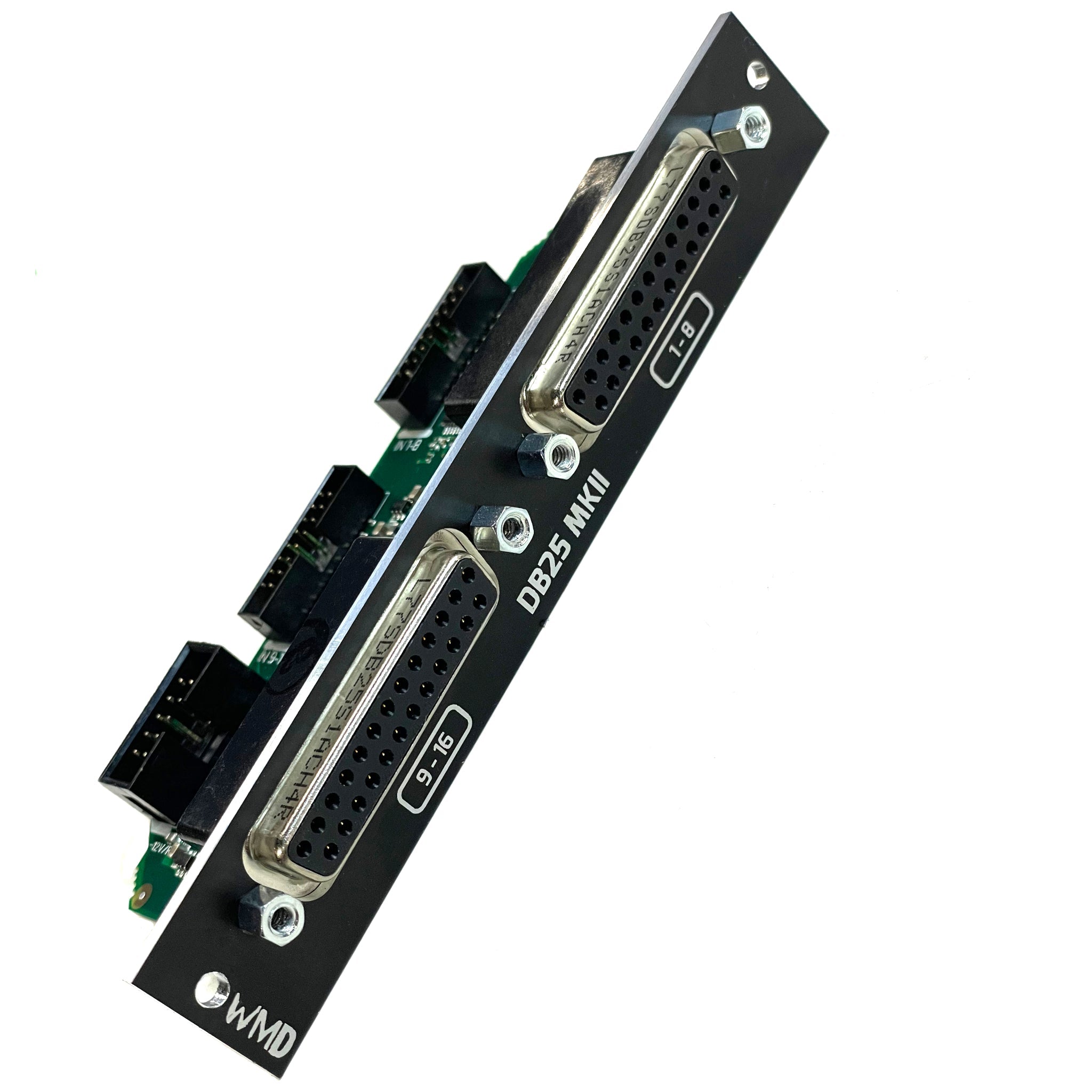

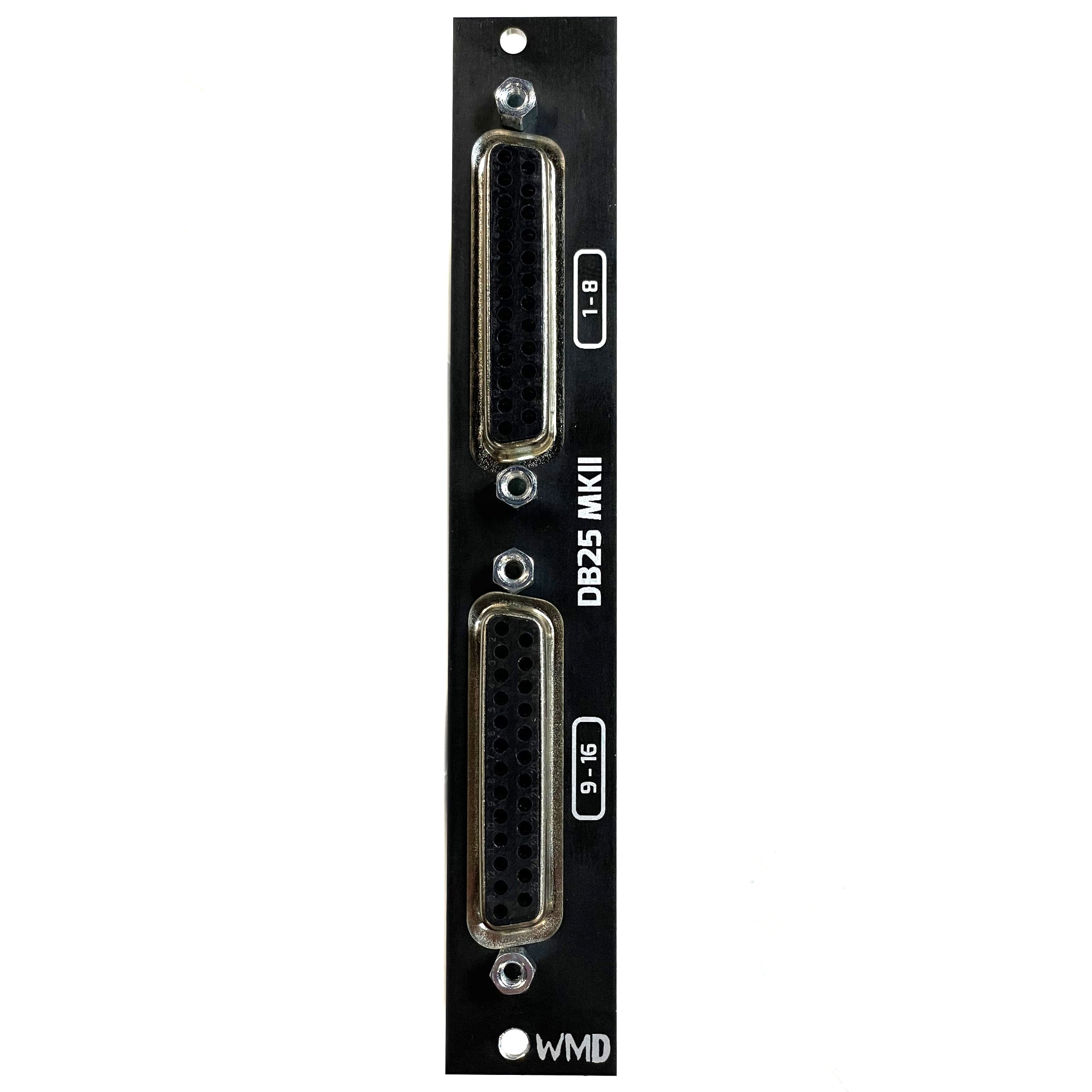

PM DB25 MKII is an expander output for the MKII versions of the Performance Mixer and Channels.
Pre-fade and Post-fade connections are available for all channels. The DB25 has 16 outputs. All mixer channels are stereo, so one DB25 handles the main PM MKII (either pre or post), and the DB25 can handle 2x Channels (either pre or post).
Simply connect the cable to the Pre or Post headers on the back of the PM MKII or Channels MKII modules to choose pre/post.
The PM MKII has an additional header with both Aux Sends, Master Bus, and Submix Bus.
Connect a DB25 cable of your choice to the front connector and then straight to your DAW or recording interface.
For use with original WMD Performance Mixer, an adapter board can be added on. Please note that width behind panel is increased by 8mm when adapter board is added on. This may require some clever position in your case. The original Performance Mixer still only offers Pre Fader Outputs.
